PROXIMITY SWITCH

Structural category				Angular column type
Outward appearance code				ALMF11	ALMF21	ALMF27
Appearance

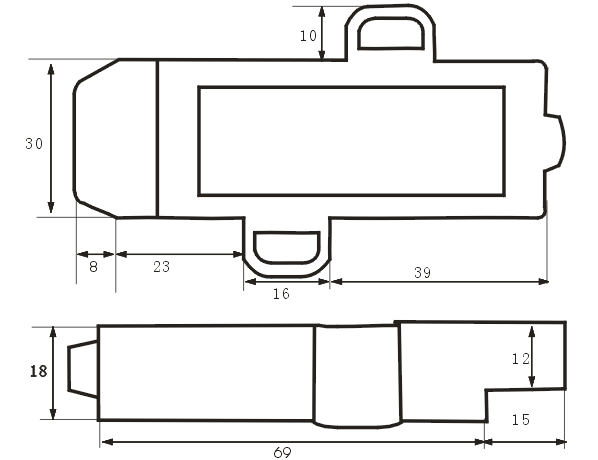

Dimension
Flush	Detection distance			5mm	4mm
	DC 6~ 36 VDC	NPN	NO	ALT11-3005NA	ALT21-3004NA
			NC	ALT11-3005NB	ALT21-3004NB
			NO+NC
		PNP	NO	ALT11-3005PA	ALT21-3004PA
			NC	ALT11-3005PB	ALT21-3004PB
			NO+NC
		two wire system	NO	ALT11-3005LA	ALT21-3004LA
			NC	ALT11-3005LB
	AC 90~ 250 VAC	SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
N0n-flush	Detection distance					8mm
	DC 6~ 36 VDC	NPN	NO			ALMF27-3008NA
			NC			ALMF27-3008NB
			NO+NC			ALMF27-3008NC
		PNP	NO			ALMF27-3008PA
			NC			ALMF27-3008PB
			NO+NC			ALMF27-3008PC
		two wire system	NO			ALMF27-3008LA
			NC			ALMF27-3008LB
	AC 90~ 250 VAC	Control- lable silicon	NO			ALMF27-2008A
			NC			ALMF27-2008B
			NO+NC
		Relay output
Control output		DC		200mA	200mA	200mA
		SCR Relay				500mA
Output voltage dropDC/AC				DC < 3VAC < 10V
Consumption current				DC < 15mA AC < 10mA
Standard detected object				20201(A3 iron)	12121(A3 iron)	18181(A3 iron)
Repeated precision				0.05	0.05	0.05
DC/AC Response frequency				500Hz	500Hz/5Hz	500Hz/10Hz
Working environment temperatuer				-25℃ ~+70℃	-25℃ ~+70℃	-25℃ ~+70℃
Insulation resistance				50M	50M	50M
Shell material				ABC Plastil
Protection standard				IP67	IP67	IP67
Altemative model at home and abroad				PL-05N PL-05P
