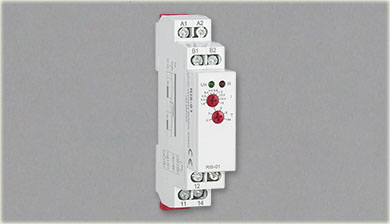

RI8 Control Relay Current monitoring Relay
-Serves for monitoring of heating in rail-switches, heating cables, consumption
of one-phase motors, indicates current flow.
-Adjustable delay 0.5 – 10 s to eliminate short current peaks.
-Flexible adjustment by potentiometer, choice of 6 ranges:
AC 0.05-0.5A; AC 0.1-1A; AC 0.2-2A; AC 0.5-5A; AC 0.8-8A; AC 1.6-16A
-Possible to use for current scanning from current transformer.
-Universal supply AC 24 – 240 V or DC 24 V.
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
Downloads PDF RI8 Control Relay Current monitoring Relay:
RI8 Control Relay Current monitoring Relay(16)
