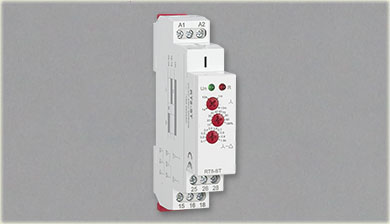

RT8 Time Relay Delay On Star Delta Designated for delay ON of motors star and delta.
RT8 Time Relay Delay On Star Delta
-Designated for delay ON of motors star/delta.
-Time t1 (star) :
time scale 0.1 s – 10min devided into 4 time ranges
rough time setting by rotary switch.
-Time t2 (delay) :
time scale 0.1 s – 1 s
time setting by potentiometer
– Relay status is indicated by LED.
– 1-MODULE,DIN rail mounting.
Downloads PDF RT8 Time Relay Delay On Star Delta:
RT8 Time Relay Delay On Star Delta(46)
