Photoelectric switch

Structural category				Photoelectric switch
Outward appearance code				AG66	AG73	AG115	AG180
Appearance

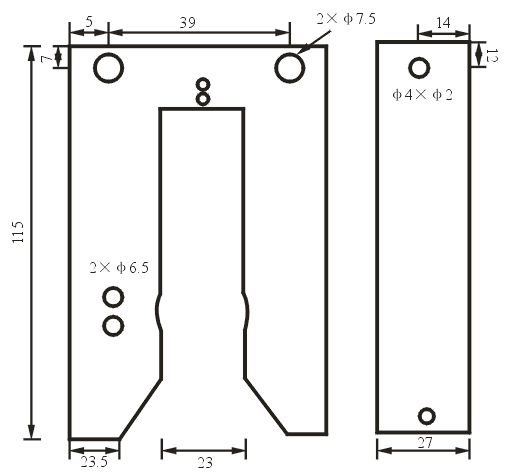

Dimension
Diffuse	Detection distance			5-30cm			10cm
	10- 30 VDC	NPN	NO	AG18-3A30NA			AG180-3A10NA
			NC	AG18-3A30NB			AG180-3A10NB
			NO+NC	AG18-3A30NC			AG180-3A10NC
		PNP	NO	AG18-3A30PA			AG180-3A10PA
			NC	AG18-3A30PB			AG180-3A10PB
			NO+NC	AG18-3A30PC			AG180-3A10PC
	90~ 250 VAC	SCR Control- lable silicon	NO	AG18-2A30LA			AG180-2A10LA
			NC	AG18-2A30LB			AG180-2A10LB
		Relay output
Retroreflective	Detection distance						2m
	10- 30 VDC	NPN	NO				AG180-3B2NA
			NC				AG180-3B2NB
			NO+NC				AG180-3B2NC
		PNP	NO				AG180-3B2PA
			NC				AG180-3B2PB
			NO+NC				AG180-3B2PC
	90~ 250 VAC	SCR Control- lable silicon	NO				AG180-2B2LA
			NC				AG180-2B2LB
		Relay output
Trough beam	Detection distance				5cm	2.6cm	5m
	DC 10~ 30 VDC	NPN	NO		AG73-3E05NA	AG115-3E03NA	AG180-3C5NA
			NC		AG73-3E05NB	AG115-3E03NB	AG180-3C5NB
			NO+NC		AG73-3E05NC	AG115-3E03NC	AG180-3C5NC
		PNP	NO		AG73-3E05PA	AG115-3E03PA	AG180-3C5PA
			NC		AG73-3E05PB	AG115-3E03PB	AG180-3C5PB
			NO+NC		AG73-3E05PC	AG115-3E03PC	AG180-3C5PC
	AC 90~ 250 VAC	SCR Control- lable silicon	NO		AG73-2E05LA	AG115-2E03LA	AG180-2C5LA
			NC		AG73-2E05LB	AG115-2E03LB	AG180-2C5LB
		Relay output			AG73-2E05JC	AG115-2E03JC
DC/SCR/ Control output				DC200mAAC:300mArelay:2A
DC/AC Consumption current				DC:15mA AC:10mA
DC/AC Response time				DC2mS AC:20mS
Directional angle				3-10
Detected object				transparent or opaque body
Working environment temperature				-25℃~+55℃
Intensity of illumination of working environment				Sunlight under 10000LX incandescent lamp under 3000LX
Shell material				Metal
Protection grade				IP60
