PROXIMITY SWITCH

Structural category				Plane installation type	Angular column
Outward appearance code				ALMF41	ALMF42	ALMF43	ALMF50
Appearance

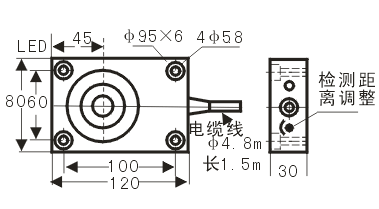

Dimension
Flush	Detection distance
	DC 6~ 36 VDC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
			NC
	AC 90~ 250 VAC	SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
N0n-flush	Detection distance			0-120mm	0-25mm	40mm	20mm
	DC 6~ 36 VDC	NPN	NO	ALMF41-30120NA	ALMF42-3025NA	ALMF43-3040NA	ALMF50-3020NA
			NC	ALMF41-30120NB	ALMF42-3025NB	ALMF43-3040NB	ALMF50-3020NB
			NO+NC	ALMF41-30120NC	ALMF42-3025NC	ALMF43-3040NC	ALMF50-3020NC
		PNP	NO	ALMF41-30120PA	ALMF42-3025PA	ALMF43-3040PA	ALMF50-3020PA
			NC	ALMF41-30120PB	ALMF42-3025PB	ALMF43-3040PB	ALMF50-3020PB
			NO+NC	ALMF41-30120PC	ALMF42-3025PC	ALMF43-3040PC	ALMF50-3020PC
		two wire system	NO
			NC
	AC 90~ 250 VAC	SCR Control- lable silicon	NO	ALMF41-20120A	ALMF42-2025A	ALMF43-2040A	ALMF50-2020A
			NC	ALMF41-20120B	ALMF42-2025B	ALMF43-2040B	ALMF50-2020B
			NO+NC	ALMF41-20120C	ALMF42-2025C	ALMF43-2040C	ALMF50-2020C
		Relay output		ALMF41-20120JC	ALMF42-2025JC	ALMF43-2040JC	ALMF50-2020JC
Control output		DC		200mA	200mA	200mA	200mA
		SCR Relay		300mA/2A	300mA/2A	300mA/2A	300mA/2A
Output voltage dropDC/AC				DC < 3VAC < 10V
Consumption current				DC < 15mAAC < 10mA
Standard detected object				2502501(A3 iron)	80801(A3 iron)	1001001(A3 iron)	60601(A3 iron)
Repeated precision				0.5	0.05	0.05	0.05
DC/AC Response frequency				10Hz/5Hz	50Hz/10Hz	30Hz/10Hz	200Hz/25Hz
Working environment temperatuer				-25℃ ~+75℃	-25℃ ~+75℃	-25℃ ~+75℃	-25℃ ~+75℃
Insulation resistance				50M	50M	50M	50M
Shell material				Fiber glass reinforced plastics	ABS Resin	ABS Resin	ABS Resin
Protection grade				IP65	IP65	IP65	IP65
Altemative model at home and abroad				TCC-2120			HD-2020
